MX125R
产品详情

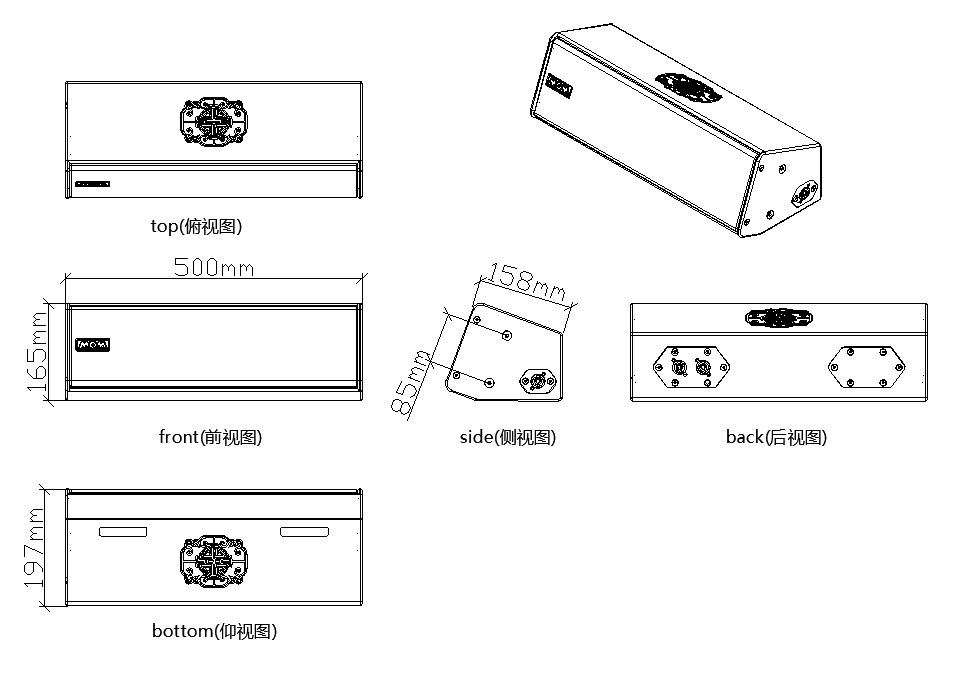

结构图 Construction Drawing:
技术指标 Technical data:
频率响应 Frequency Response(+/-3dB): | 80-19000Hz |
频率响应 Frequency Range(-10dB): | 75-19000Hz |
推荐高通滤波器 Recommended High-Pass Protection Filter: | 75Hz最小12dB/倍频程滤波器 |
覆盖角度 Dispersion(-6dB) | H60°×V40° |
连续功率 Power Handling,Long-Term Continuous: | 200W ( AES) |
峰值功率 Power Handling, Peak: | 800W |
灵敏度 Sensitivity(SPL/1W@1m)(2): | 92dB |
最大声压级 Calculated Maximum SPL@1m(3): | 115dB |
最大声压级 Calculated Maximum SPL@1m,peak: | 121dB |
扬声器 Transducers:
低音扬声器 Low Frequency: | 2×5"PHL低音扬声器(1.5" voice coil) |
高音驱动器 High Frequency: | 1×B&C高音钕磁驱动器(1.4" voice coil) |
额定阻抗 Nominal Impedance: | 8 Ohms |
箱体 Physical:
木箱材料 Enclosure Material: | 俄罗斯桦木板 |
表面喷涂 Surface paint: | 黑色聚脲漆(可定制色) |
防水等级 Environmental: | IPx3 |
连接器 Connectors: | 4×Neutrik NL4 |
安装 Suspension: | 置地/吊装 |
产品尺寸 Dimensions: | (W)500mm×(H)165mm×(D)197mm |
净重量 Net Weight: | 7kg |
